BALL AND PIN PRESSING MACHINES

• This Is Tree Passage Micro Leak Testing Machine For Carburettor. All Three Passages Are Simultaneously Checked For Leak Rate.
• 1st Station Ball Plug Press From Two Sides & Pin Press From One Side.
• 2nd Station Leak Testing Of The Plugged Holes For Both The Sides.

BALL AND PIN PRESSING MACHINES
BALL AND PIN PRESSING MACHINES


BALL AND PIN PRESSING MACHINES

1st Station Plug & Pin Pressing;
2nd Station Leak Testing & Passage Open Confirmation

BALL AND PIN PRESSING MACHINES





DATE AND YEAR MARKING MACHINE

Marking Machine On Auto Motive Locks. Toggle Type Arrangement With Totally Pneumatic Cycle. It Does Not Use Any Electrical

DATE AND YEAR MARKING MACHINE





GLOVE LATCH ASSEMBLY

Glove Latch Assembly Machine - It Is Purely  Pneumatic Based Assembly Machine.

GLOVE LATCH ASSEMBLY

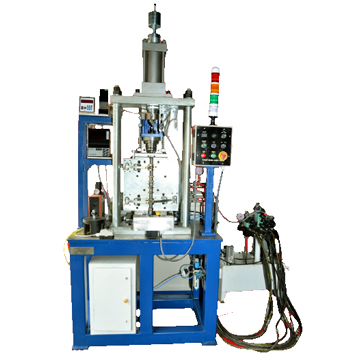

TARGET WHEEL ASSEMBLY MACHINE

• Basic Machine Hydraulically Operated. Target Wheel Is Held In Special Holder. Cam Shaft Is Located In A Fixture & Clamped By Hydraulic Cylinder. During Pressing Load Is Measured. Target Wheel Has To Rest Against The Collar Face Of The Cam Shaft.

TARGET WHEEL ASSEMBLY MACHINE





ASSEMBLY SPM OF AC CONTROL PANEL


• Car Ac Control Panel Assembly Station. This Press Is Operated By Purely Pneumatic Circuit.

ASSEMBLY SPM OF AC CONTROL PANEL




PIN PRESSING SPM


• Purely Pneumatically Operated Pin Pressing  SPM For Two Types Of Jobs.

PIN PRESSING SPM




TORQUE BRACKET PRESSING PRESS

• Two Station Torque Bracket Pressing SPM.
• Press Opearted By Pneumatic System Only. No Electricals Are Used.
• On 1st Station One Bracket Is Pressed & On The 2nd Station Second Bracket Is Pressed. Loading / Unloading Is Manual.
• Machine Is Provided With Bin Keeping Trays.

TORQUE BRACKET PRESSING PRESS





 TARGET WHEEL PRESS MACHINE


• Check Target Wheel Dia. By Air Gauge.  Press Push Button To Confirm The Bore Is Within Tolerance. Then Load The Target Wheel In The Holder On The Machine.
• Load Cam Shaft Manually. For Orientation Pin Is Provided At The Bottom Face.
• Press Two Hand Cycle Start Buttons.
• Press Moves Donwards, First Load Is Measured Upto To Set Length. Then Press Returns By Pressure Switch.

TARGET WHEEL PRESS MACHINE





BALL PLUG; PIN PRESS & LEAK TESTING MACHINE


• Two Station Machine With Bowl Feeder For Pin Escapement & Bowl For Ball Plug Escapement.
• Load Cam Shaft Manually.
• First Station –  Pin & Plug Is Pressed Automatically. Pressing Load Is Confirmed.
Second Station – Leak Testing Of Pressed Ball Plug Is Confirmed.


BALL PLUG; PIN PRESS & LEAK TESTING MACHINE





8 STATION ROTARY INDEXING SPM FOR TUBE VALVE CORE FIXING


8 STATION ROTARY INDEXING SPM FOR TUBE VALVE CORE FIXING
